Hammer Crusher and Box Crusher

Hammer Crusher

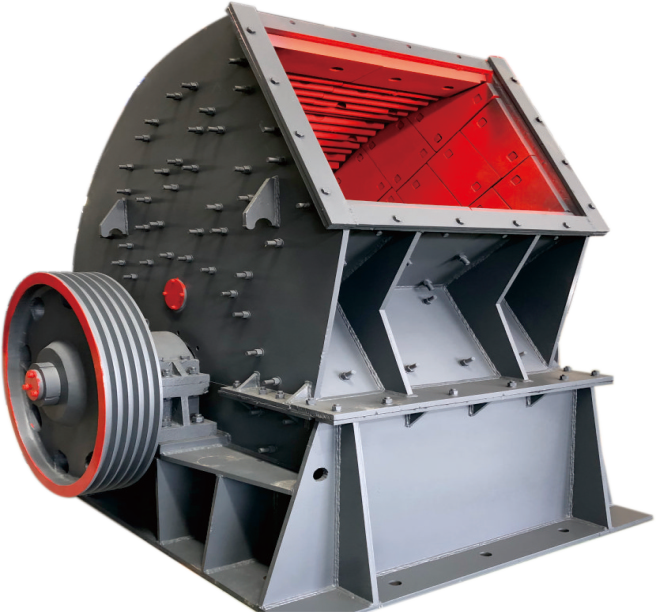

--PCZ series heavy-duty hammer crusher--

PCZ series heavy-duty hammer crusher is a new crusher developed on the basis of PC series crusher, according to user feedback information and the development trend of crushing industry, combined with the experimental data of our company. Compared with other hammer crushers, the alloy composite hammer head has the remarkable characteristics of high wear resistance, large rotational inertia and high rotor kinetic energy. thas the characteristics of large feeding size, high crushing ratio and low maintenance cost. With a production capacity of 50 to 5000 tons, this series of crushers is becoming the preferred equipment in the crushing industry.

Featres ;

1. The heavy hammer crusher has the characteristics of high output, low energy consumption, simple structure and convenient maintenance.

2, compared with the same output of jaw crusher, can reduce equipment investment, with less investment, effective fast.

3, the machine adopts the grate—free design, for wet materials, containing more soil broken raw materials, to eliminate the

blockage of adhesion.

4. The machine adopts alloy compound hammer head, which reduces the consumption of wom parts and reduces the

production cost by about 35%.

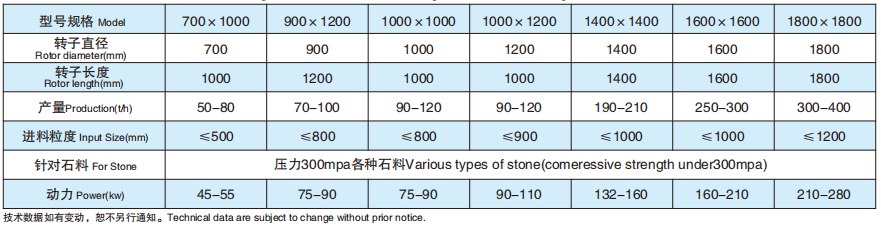

Specifications and performance parameters

Box Crusher

--High efficiency and energy saving stone box type special crusher--

Box Crusher is used for crushing medium hardness of brittle materials, such as limestone, coal and other materials. The maximum compressive strength of the crushed material is not more than 150kg/cm. Mainly used in highway, railway therapy, cement, mining, coal preparation, power generation, chemical industry and building materials and other departments. Especially suitable for the production of the following 300 party stone factory, compact structure, reasonable technology, low investment, high economic efficiency.

Working principles：

The rotor disc under the driving of the motor, to drive the hammer in high speed motion, when the material into the crushing chamber, the bulk materials piled up in the machine are arranged in the middle section, after crushing size larger than required materials with new material to the tangential direction of rock hammer impact plate broken again,so rough, broken a the last step, to meet the requirements of the material through the entire Toshi boards qualified after unloading.

Box crusher performance characteristics:

1. feed particle size, large crushing ratio, uniform discharge;

2. finished product rate is high, granular products accounted for about 85%, fully in line with the requirements of the

use;

3. high yield, stable performance:

4. rough, broken one step in place, process simplification;

5. resistant materials with high impact plate hammer, and Toshi boards, longer service life;

6. matching powers small, low energy consumption, easy maintenance, less wearing parts.

Specifications and performance parameters
