Cone Crusher

HPT Series Multi-cylinder Hydraulic Cone Crusher

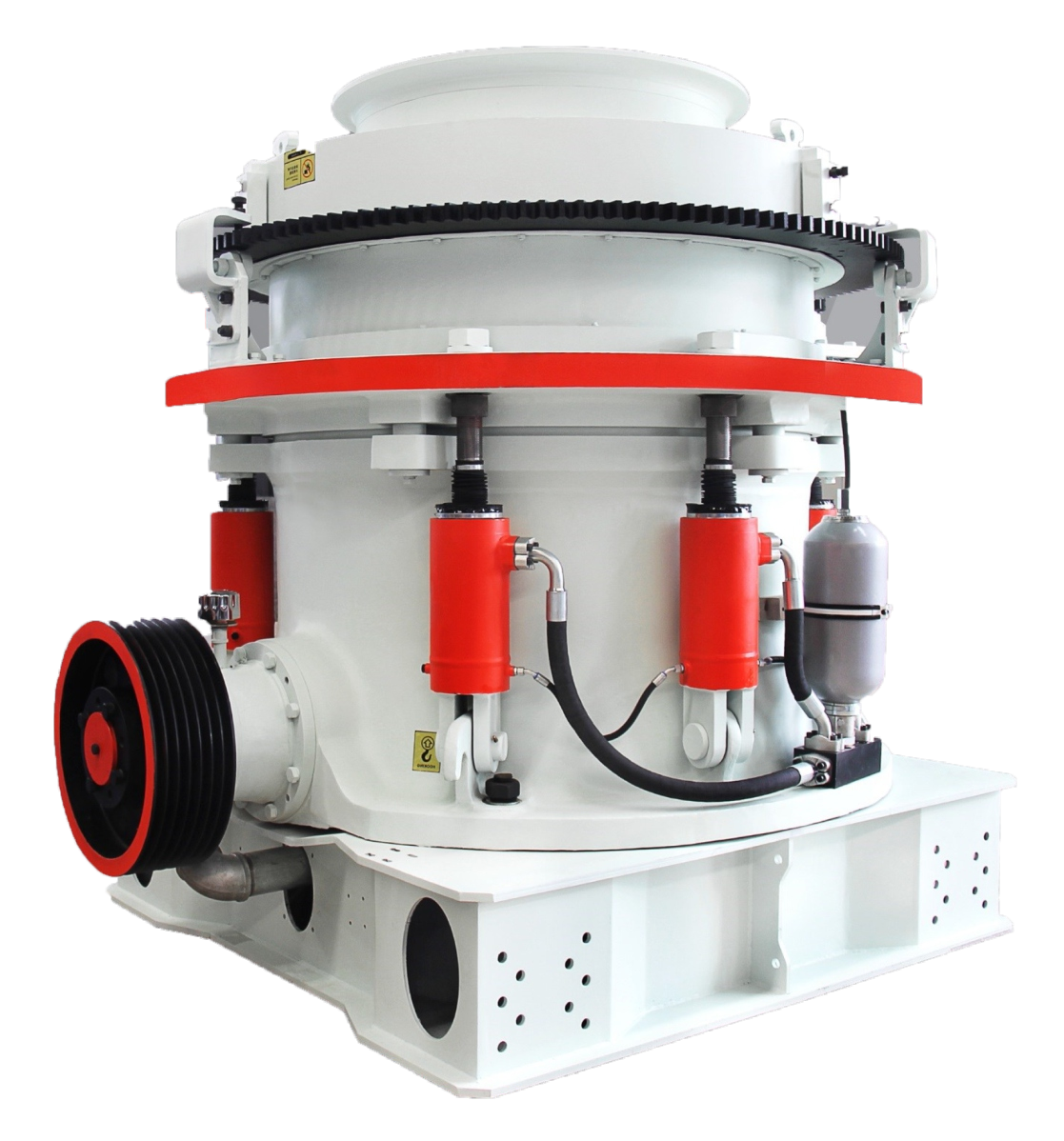

HPT multi-cylinder hydraulic cone crusher series set of mechanical, hydraulic, electrical and automation technology at an organic whole, with a number of traditional crusher incomparable advantages, high grinding efficiency, low production cost, easy to maintain, crushing grain type products, cone crusher is mainly used for metal mines, construction sand and gravel processing of two stage crushing and three broken links, is now the mine construction industry and the metal mining industry to replace the spring cone crusher and general hydraulic cone crusher is the latest generation of products.

Working Principle:

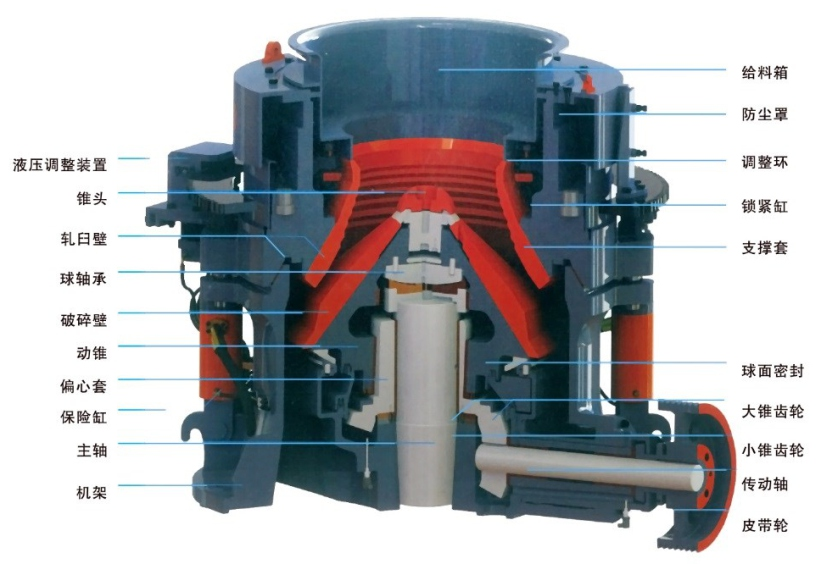

The motor drives the eccentric sleeve to rotate through the triangle belt,drive shaft and bevel gear pair, and the moving cone rotates under theaction of the eccentric sleeve. Moving cone and fixed cone get close to and deviate from each other at times, and the materials in the crushing cavity are extruded and rolled to crush by 360°，and the broken materials are discharged from the lower part.

 Performance features:

1、Fixed shaft, strong bearing capacity of the equipment, more compact structure, small size, high efficiency.

2、By adopting the design of inter-granular lamination principle. By utilizing the mutual extrusion between materials, it significantly improves the crushing efficiency and the proportion of fine materials, greatly reduces the needle-like materials and reduces the steel consumption of wearing parts.

3、Advanced bearing design, the use of tin bronze bushings sliding bearing design, and rolling bearings, compared with the equipment in the high dust, high impact environment can still maintain a high load capacity, and low production costs.

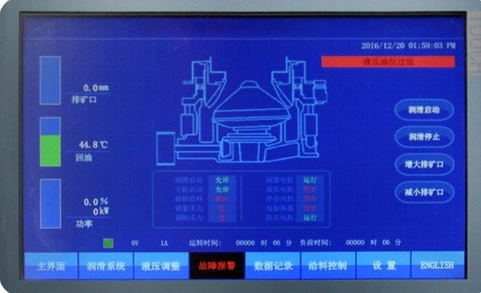

4、Temperature sensor is installed at the oil return place of horizontal shaft to accurately detect the oil temperature and ensure the stable operation of the equipment; the transmission system adopts spiral bevel gears, which makes the transmission reliable and smooth.

5, cone wall thickening at the same time, improve the liner fixing method, no need to glue, replacement is very convenient and fast, reduce maintenance costs.

6、Integrated hydraulic lubrication, unique thin oil lubrication system design, greatly improving the service life of the equipment. High-performance non-contact seals, more conducive to ensuring lubricant cleanliness.

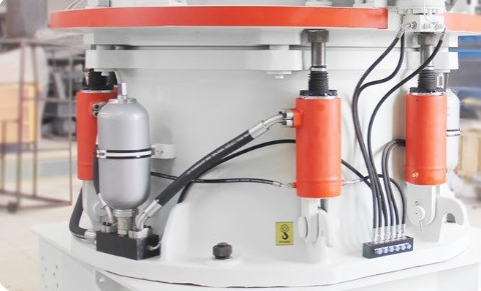

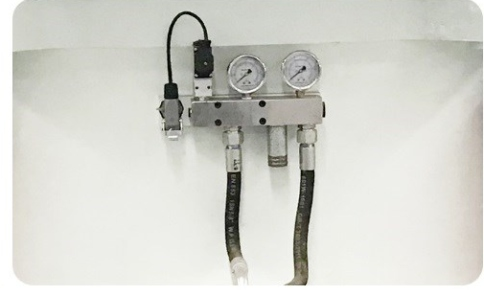

7、Insurance cylinder oil circuit adoptslarge diameter oil pipe, large-capacity accumulator, better buffer performance, more rapid response, safer equipment.8、Floating mounting base as standard, simple installation, labor-saving and time-saving, lower requirements for thefoundation,small investment for users.

Specifications and performance parameters

Production capacity

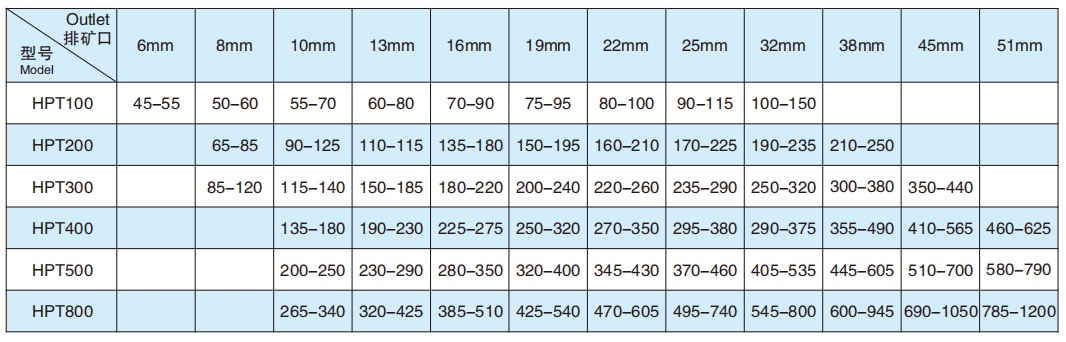

⭐️：Production capacity table can be used as a tool for the initial selection of HPT cone crusher, the data in the table is based on the material bulk density of 1.6t/m', instantaneous sampling of the measurement results; in the feed material with high content of fine-grained grades, closed-circuit operating conditions, the equipment capacity can be increased by about 15-30% compared with open-circuit operation.

Grain Size Distribution Curve

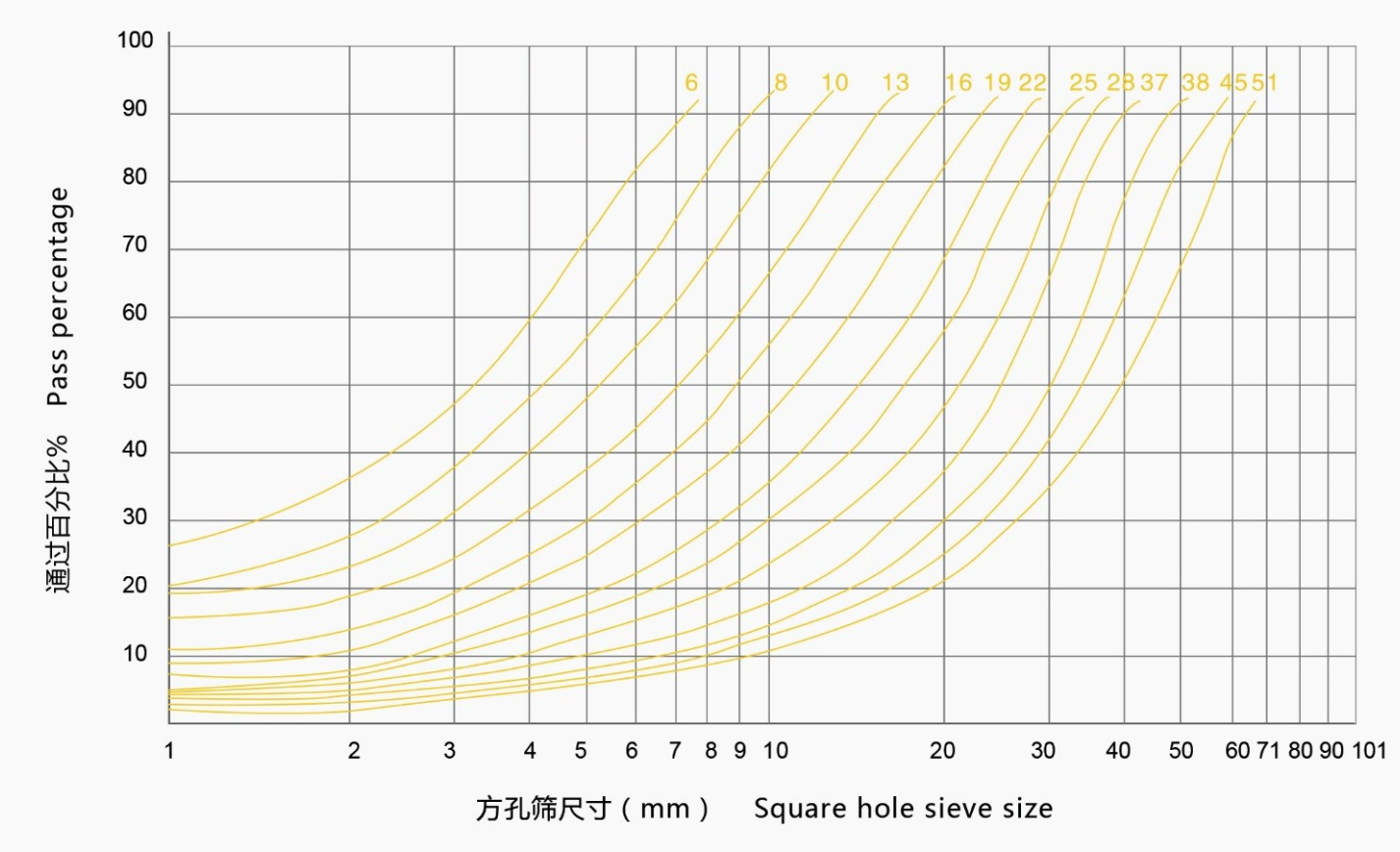

HPT Multi-cylinder Hydraulic Cone Breaker Particle Size Distribution Curve

⭐️The particle size and production capacity are related to the feed size, crushing cavity type, material density, water content, soil and mud content and other factors.
